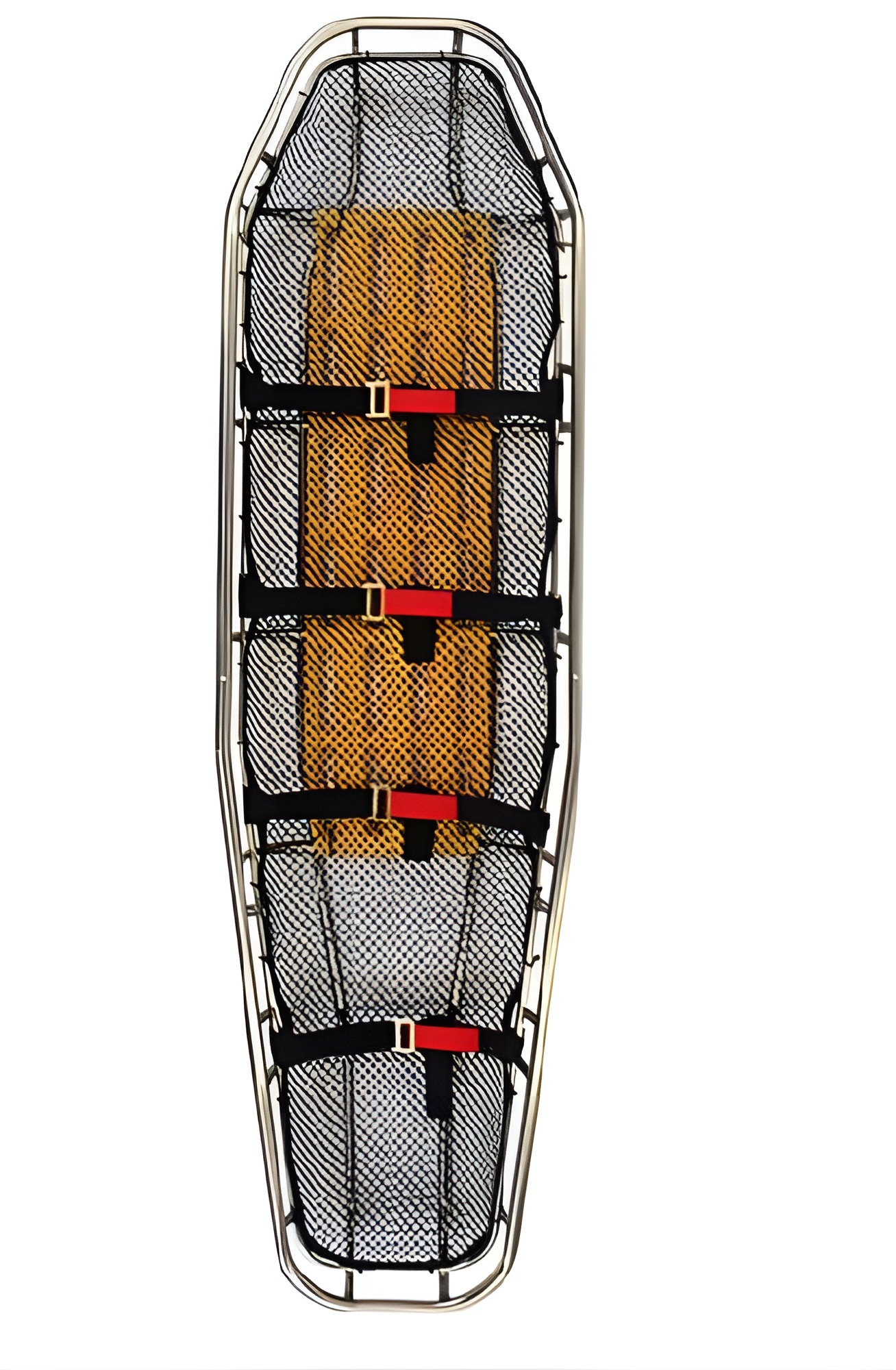

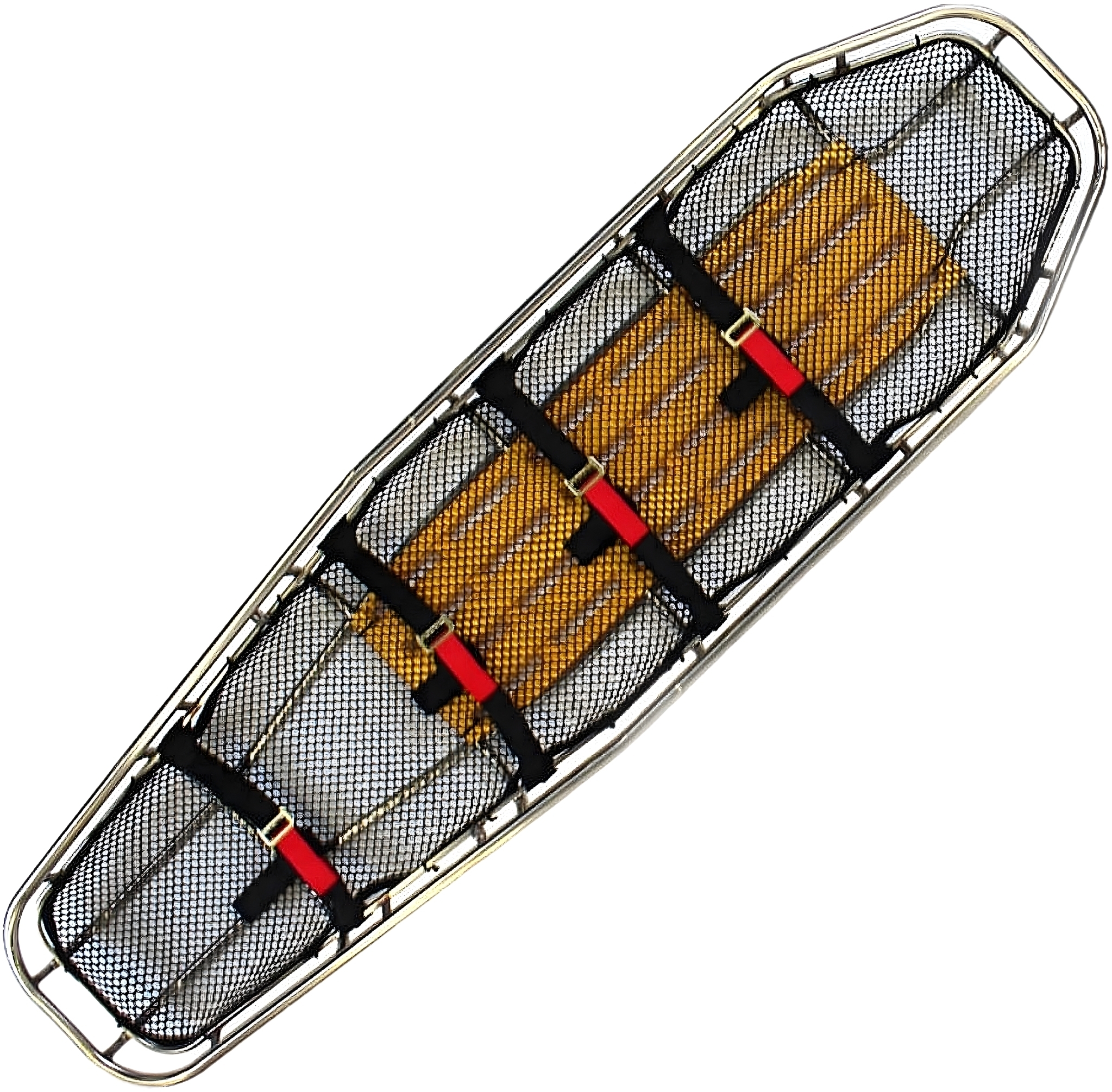

Basket Stretcher Traverse Steel Tapered
The Titan Tapered Basket Stretcher is an all-stainless, TIG-welded frame construction basket stretcher. It relies on its frame geometry, construction methods and materials for its ultimate strength.
The Titan Tapered Basket Stretcher is UL Classified and conforms to the NFPA 1983, Standard on Life Safety Rope and Equipment for Emergency Services, 2012 Edition.
The Titan Series Basket Stretchers are specifically designed to perform in a technical rescue environment. The materials allow it to survive in almost all conditions, while the design itself allows for a user-friendly platform from which to work.
Unique features include a 25.4mm (1 inch) top-tube to make it easy to hold onto relative to smaller-tube frames. It also comes with four StratLoad™ attachment points that make it quick, easy and safer to clip your Litter Bridle into. These attachment points protect the carabiner from wall and rock faces etc. The High Density Polyethylene netting allows water and air to easily pass through the patient compartment, yet the small holes keep from snagging debris as easily. The High Density Polyethylene material will not rust and potentially cause additional harm to your patient, and they are attached with shock cord so they will give-way when loads are improperly placed on it.
Description
- Titan Tapered Rescue Stretcher is completely stainless with TIG welded frame construction
- Supplied with four belts
- Tested to withstand static load of 1134 kg (11 kN)
- Patented StratLoad™ feature as standard
- Tapered design
- 25.4 mm top tube
- Durable High Density Polyethylene (HDPE) mesh
- Highly abrasion resistant UHMW-PE (Ultra-high-molecular-weight polyethylene) back plate
- Compatible with all our FERNO back boards
- Traverse rescue stretchers have an expected life cycle of 10 years
Product information
- Art. Nr TR110100A
- Certifications CE 93/42/EEG (MDD), UL, NFPA, ASTM F2821-10
- Load Capacity 11 kN/1136 kg
- Weight 14 kg
- Height 18,7 cm
- Length 212 cm
- Width 59,4 cm
