Tripod
Arachnipod Standard Tripod

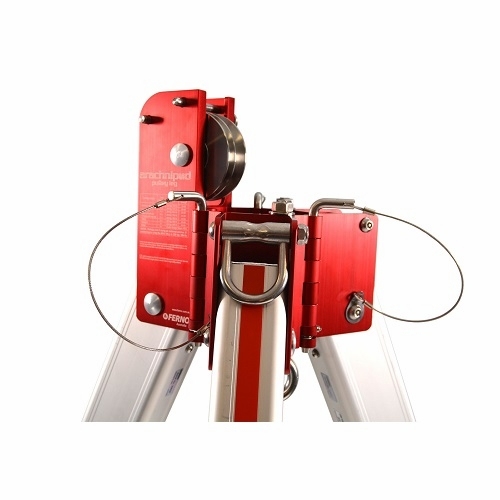

The Arachnipod Standard Tripod comprises two Standard Legs and a Pulley Leg. The system provides two load attachment points, three stabilization rigging points plus a double-grooved pulley. The Arachnipod's uniquely designed head system allows the legs to be quickly disconnected from each other to store flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard Foot 2.
Size
Color
excl. VAT
Price on request
Configured to your needs. Request a no-obligation quote and an advisor will put together the right solution.
Request a quote

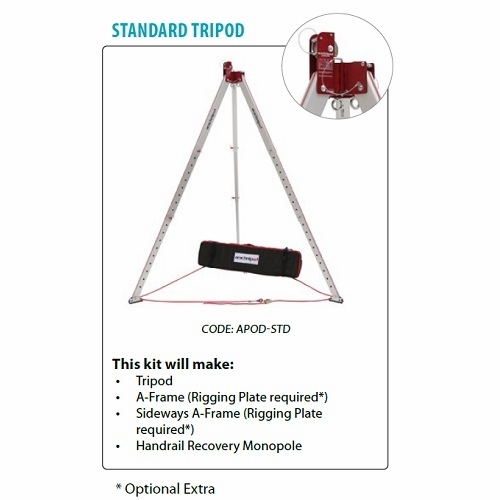

Arachnipod Standard Tripod
Features
- Rectangular, adjustable legs with leg pins
- Two stainless steel swivel eye bolt anchor points
- Stainless steel double-grooved pulley accommodates 8mm steel wire rope and fiber rope up to 13mm
- Each leg includes a stabilization attachment point

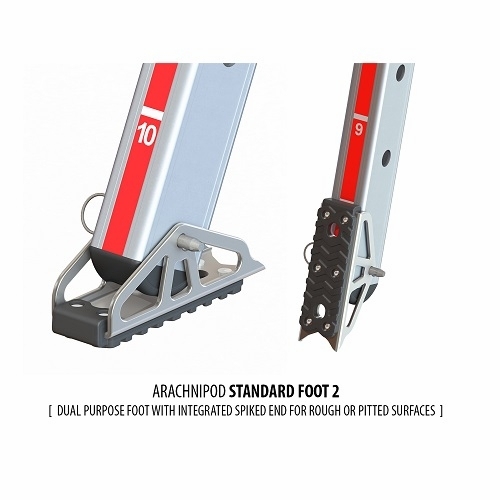

- Upgraded Standard feet suits both flat and uneven surfaces, pivot to adjust to ground variations and incorporate an aggressive non-slip tread pattern
In the Box
- 2 x Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilization rigging
- 1 x Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fiber rope as well as up to 8 mm steel/stainless steel wire cable rope
- 1 x Feet Rope and Rope Grab
- 1 x Transport Bag
The Standard Tripod can be Configured into:
- Tripod
- A-Frame (Rigging Plate required - sold separately)
- Sideways A-Frame
- Handrail Recovery Monopole
Specifications Standard Tripod
- Max. Inside Clearance Height: 2671mm

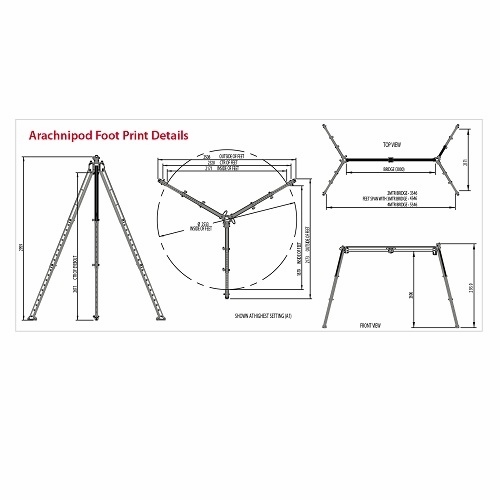

- Inside Feet Footprint: 2533mm
- Configured Device Weight: 27 kg
- WLL External Anchor Point: 400 kg at max. height
- Minimum Breaking Strength: 40kN
- WLL Load Anchored to Leg: 220kg
- Certification: Certified in 3 and 4 leg configurations to CEN/TS 16415:2013 for max 2 persons and EN 795:2012 for single person use
Art. Nr
