Tripod
Arachnipod Full Accessory Kit
The Full Accessory Kit contains essential add-ons to expand your Arachnipod's adaptability plus useful accessories that enhance work flow and operational efficiency in the field.
Size
Color
excl. VAT
Price on request
Configured to your needs. Request a no-obligation quote and an advisor will put together the right solution.
Request a quote

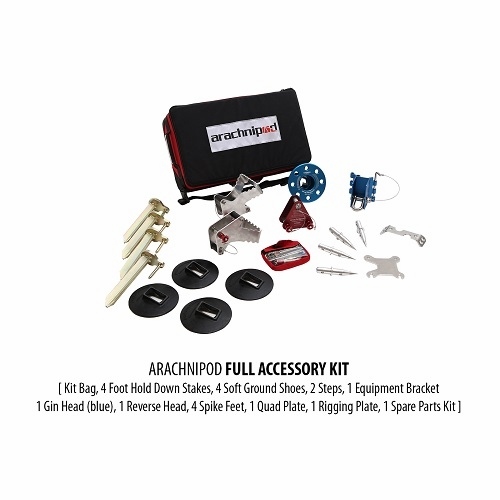

Arachnipod Full Accessory Kit
Kit Contains of:

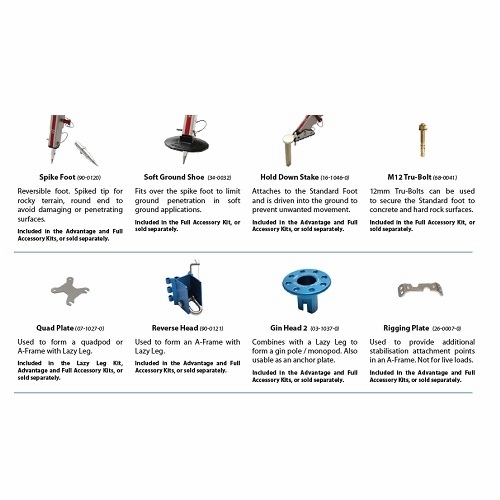

- Arachnipod Steps - An invaluable aid to enable you to access the system's head to untangle ropes or attach additional gear without having to lower the system.
- Hold Down Stakes - Secures a standard foot directly to the ground, eliminating the need to tether the feet with rope.
- Soft Ground Shoes - Limits ground penetration / sinking in soft ground applications.
- Spike Feet - Used in lieu of the standard foot for point loading and ground penetration applications. Can also be used in conjunction with soft ground shoes.

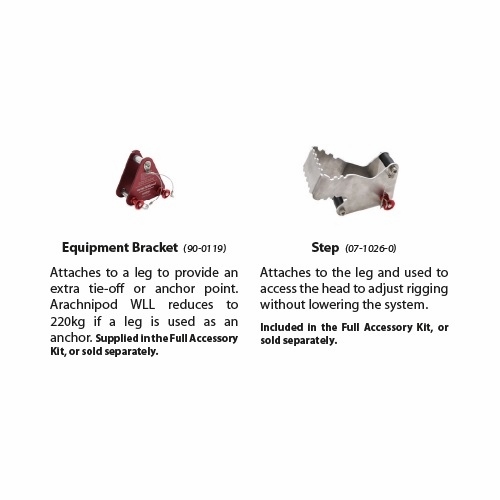

- Equipment Bracket - Can be used for rope descenders, belay devices, hauling systems and for tying off rope.

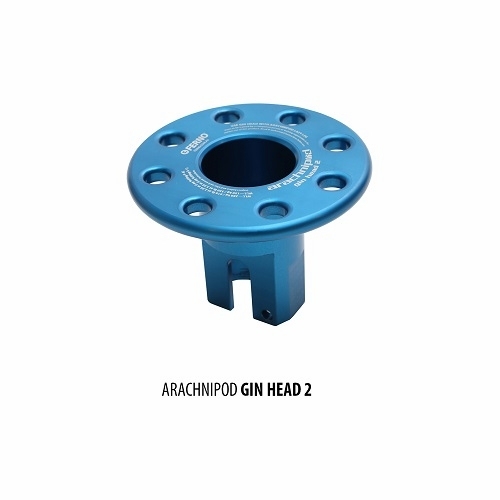

- Gin Head 2 - The new Gin Head has a slightly taller profile and is lighter than the original Gin Head. A Gin Head is combined with an Arachnipod Lazy Leg to form a Gin or monopole. It can also be used as a large rigging plate when not used in a gin pole configuration. Gin Head 2 is compatible with the original Lazy Leg and new Lazy Leg 2.
- Reverse Head - The reverse head is used to change the angle between legs and is used when a lazy leg configuration is required.
- Quad Plate - The quad plate is used whenever four legs or heads are used together such as when forming a quadpod or lazy leg configurations.
- Rigging Plate - The rigging plate is used to provide additional stabilisation attachment points when only two legs are connected.
- Hardware - Contained in a handy see-through pouch, spares and additional hardware includes masonry bolts, drill bits, spare head, leg, and detent pins
- Kit Bag
Code Description Qty, 42-1012
- Accessory Bag: 1, 03-1037-0
- Gin Head: 1, 26-0008-0
- Rigging Plate: 1, 07-1027-0
- Quad Plate: 1, 90-0121
- Reverse Head: 1, 90-0120
- Spike Foot: 4, 34-0032
- Soft Ground Shoe: 4, 16-1046-0
- Hold Down Stake: 4, 07-1026-0
- Step: 2, 90-0119
- Equipment Bracket: 1, 68-0041
- M-12 Tru-bolt: 8, 68-0042
- M-12 Masonry Drill Bit: 2, 22-1002
- Spare Qik-link Head Pin: 2, 68-0036
- Spare Detent Pin: 2, 90-0112
- Spare Leg Pin: 1
